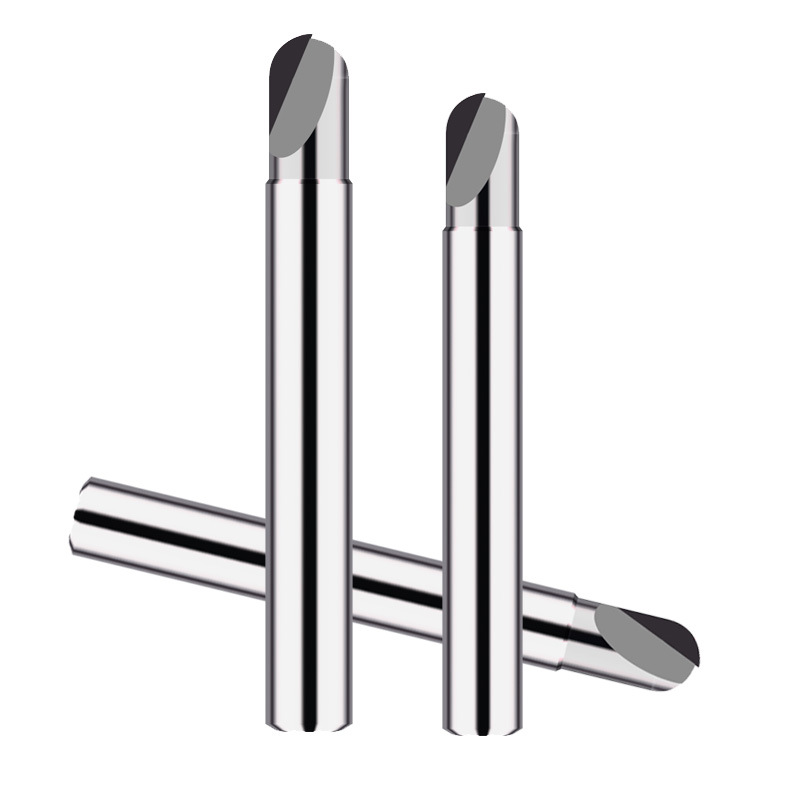

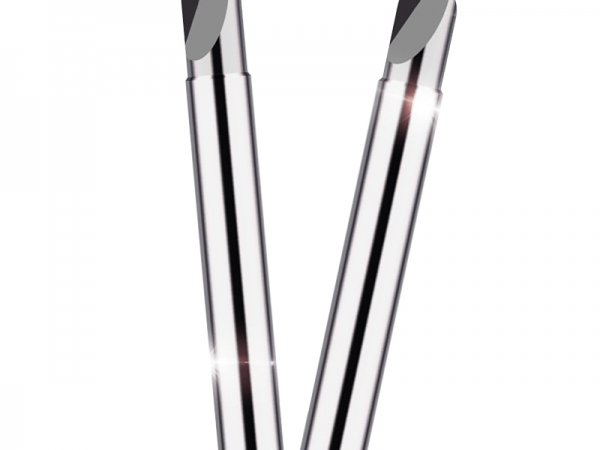

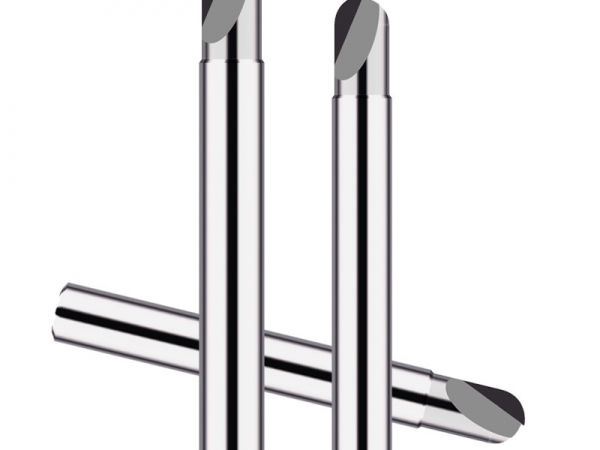

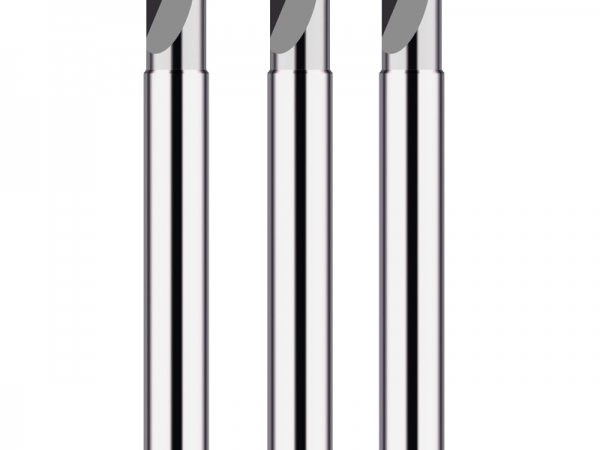

CNC Lathe Turning Tools PCD Half Ball Cutter

Short Description:

  Product Information Origin Tianjing, China Material Diamond Brand MSK Type Side Milling Cutter Handle Form Round Applicable Machine Tools Lathe Series PCD Series Processing Range Processing Copper, Aluminum, Acrylic, Etc. &n……


Product Detail



Product Information
Origin Tianjing, China Material Diamond
Brand MSK Type Side Milling Cutter
Handle Form Round Applicable Machine Tools Lathe
Series PCD Series Processing Range Processing Copper, Aluminum, Acrylic, Etc.



Performance comparison of single crystal diamond series
Processed material Processing methods Processing method (m/min) Feed rate (m/min) Depth of Cut (mm)
Fluorosilicone Acrylate Soft Contact Lenses turning 100-200 0.4 0.1-1.5
PMMA hard contact lenses turning 100-200 0.04 0.1-1.5
Electroless Nickel (STAVAX) Brass turning 100-800 0.003-0.01 0.005-0.001
Fly milling 50-1000 0.0005-0.003 0.0005-0.003
Oxygen-free copper turning 200-880 0.05 0.1
Aluminum, aluminum alloy turning 100-500 0.05-0.5 0.02-0.2
milling 100-500 0.1-0.5 0.02-0.2
gold jewellery turning 1000



Feature:

  1. High hardness, no knife marks. Strong stability, improve processing efficiency.
  2. Tungsten steel blade, the surface is frosted with advanced grinding technology, with higher precision and higher temperature resistance.
  3. High hardness diamond is used as the raw material of the cutter head, which is sharp and durable, and has a long service life.
  4. Flat bottom design, smooth cutting. The high-precision flat bottom has high concentricity, and the engraving is more three-dimensional.
  5. Tungsten steel handle, better stability.



Precautions

Do not touch the cutter head with your fingers or anything. Although the hardness of diamond is very high, even a slight touch will damage the cutting edge and make the cutter unusable. Because a hard particle or even dust hitting the blade at high speed is enough to damage the blade.

If there is wear during use, it can be detected by microscope. If it is within the scope of grinding, it can be re-ground and reused for many times to save costs. If it exceeds the range of measurable wear, the tool needs to be replaced.
